Trailer crane PTK 31 - A lot accomplished in a small space

Lift technology

Craft and construction companies need compact machines at confined work sites, which make the daily work easier and more efficient. Scheyhing Holzbau from Leonberg-Höfingen has therefore been using the particularly compact PTK 31 trailer crane from Paus for several months.

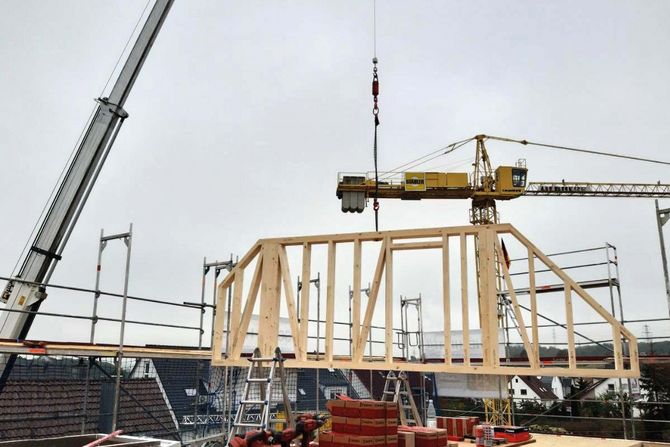

Anhängerkran PTK 31-in use
Scheyhing Holzbau in action in Höfingen. As part of an extension of two old half-timbered houses in the city center, heavy, prefabricated building elements had to be lifted in a confined space. It is precisely on jobs like this that the PTK.

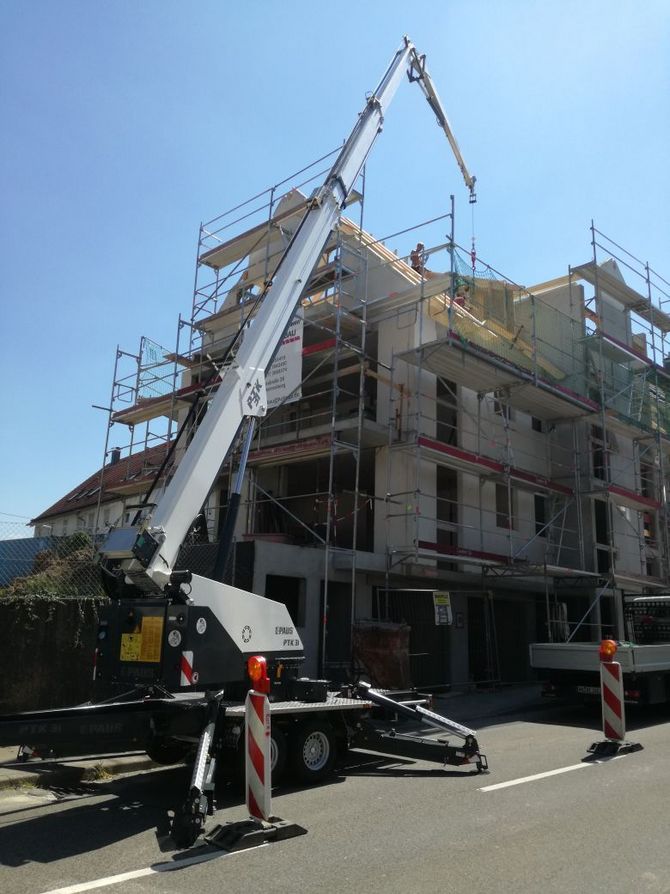

Paus-Anhängerkran PTK 31-in use

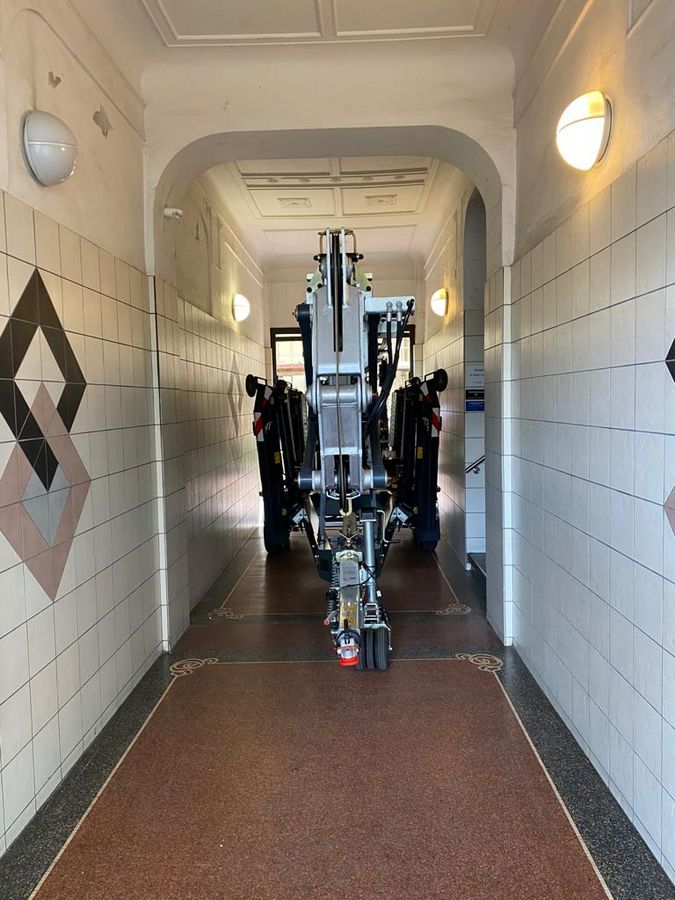

Due to its compact design and in combination with a powerful travel drive, the PTK 31 from Paus can be driven to hard-to-reach operating locations, e.g. rear heights.
Paus-Anhängerkran PTK 31-in use
The support base of the Paus trailer crane can be adapted to the space conditions at the job site via the telescopic folding supports. This reduces the space required at the place of operation so that the flowing traffic is impeded as little as possible.

Trailer cranes have become an indispensable part of the machinery of craftsmen's businesses and construction companies. Roofers, carpentry companies and building construction companies like the high degree of flexibility of trailer cranes. Towing vehicles are available anyway, and crane operation is so simple that any trained person can handle the machine safely.

Flexibility increased
Andreas Frank, master carpenter at Scheyhing Holzbau, has been using a Paus PTK 31 trailer crane since 2021. "We regularly spent a lot of money on renting cranes. So the decision was obvious that we invest in our own machine that is always available to us. We can already say that it was exactly the right decision, for example because material can be delivered flexibly. In the past, we always had to make arrangements regarding crane availability," says Frank.

The technically most important
The PTK 31 from Paus lifts loads of up to 1,600 kg and has a hook height of almost 31 meters. This makes it one of the top models on the market. In retracted basic position, the trailer is only 8.8 m long including the drawbar. The trailer demonstrates its compact design with a transport width of 1.99 m and a transport height of 2.45 m.
The aluminum telescopic boom with fully hydraulic top boom, mounted on a two-axle trailer chassis, is easy to transport with a towing capacity of 3.5 t. When uncoupled, the powerful hydraulic travel drive ensures foolproof positioning at the installation site. The standard lowerable rear axle prevents the erosion effect common with tandem axles, so that material and ground are protected during maneuvering.

Great performance at a small site
The advantages of the particularly compactly built Paus trailer crane are particularly evident at confined work sites. Carpenter Frank says: "The concept of the Paus Trailer Crane convinced us because it has telescopic folding supports. Depending on the space available, we can sometimes choose more or less support width. In addition, we can slide the trailer drawbar into the base frame of the chassis at the installation site, which further reduces the space requirement. That's only available from Paus."
Once positioned, set-up is very easy thanks to the automatic self-leveling of the support. "The control panel, which controls all crane functions, is very easy to understand. Coupled with the wide range of accessories, the PTK 31 provides optimum support for all our work steps. From A, like lifting demolition away, to Z, like lifting bricks up."

Multifunctional with accessories
The large Paus accessories range leaves nothing to be desired. Roof tile tongs, tipping troughs and pallet forks are available just like roof tile distributors, personal fall protection and long goods forks..
"At Scheyhing Holzbau, we primarily use the crane to cover roofs with debris troughs, move old and new laths and timbers, and lift entire wall elements and roof trusses. And last-but-not-least for convenient roofing by tile spreader."


Hybrid drive technology possible
The combustion engine installed as standard ensures the crane and travel drive functions. Due to the load-dependent speed control, the engine is economical in consumption. Optionally, the Paus PTK 31 is recommended with an environmentally friendly 400 V E-drive. Emission-free and low-noise applications are thus also possible in the interior of buildings.


Efficiency pays off
"Even heavy strokes can be handled thanks to the finely adjustable control system. And what is particularly positive is that the crane has brought us forward in terms of construction site efficiency. Construction sites on which we previously needed 3-4 employees, we can manage with 2-3 employees with the help of the Paus trailer crane. This amortizes the investment even more", master carpenter Frank is pleased and thus praises the crane and radio remote control functions of the PTK 31 by Paus.

About Hermann Paus Maschinenfabrik GmbH:

With more than 300 employees, Hermann Paus Maschinenfabrik is known worldwide as a partnering manufacturer of construction machinery and dumpers, mining and tunneling vehicles, inclined elevators, aerial work platforms and cranes. In the more than 50 years of company history, PAUS has grown to become one of the leading companies in special machinery construction. The company from the Emsland region focused early and consistently on high quality standards and customer orientation in all areas: from development and production to service.


Editorial contact manufacturer:
Hermann Paus Maschinenfabrik GmbH
Erin Preßler, Marketing
Tel.: +49 (0) 5903/707-315
Mail: epressler@remove-this.paus.de
Siemensstraße 1–9, 48488 Emsbüren GERMANY

Editorial contact user:
Scheyhing Holzbau GmbH
Andreas Frank
Paul-Ehrlich-Straße 7, 71229 Leonberg GERMANY
