Bigger, better: PAUS Multi Tool Carrier for underground mining

Due to the increase of requirements in underground mining and the changes in mine design, the vehicle and operation parameters have changed to more working coverage and more flexibility. The new MultiToolCarrier covers an area of 65 m². The telescopic arm can be extended to a working height of 9.2 m and swivels 45° to each side. The payload of the machine is up to 3.7 tons, depending on the configuration.

Versatile in use

The new machine can be used for a wide range of jobs. Thanks to the PAUS quick interchangeable plate on the telescopic boom and the ISO 3-point rear power lift, the machine can be equipped with a wide range of front and rear attachments. The quick-change system allows all attachments to be changed easily.
Typical applications include the man basket, but also shovel, pallet fork, loading hook, tire changer and many other options. With an ANFO vessle and air supply attached to the rear of the machine, the equipment becomes an explosives charger; then the drill holes can be filled from the basket.
The machine can be used for a wide range of applications, including material handling, mine maintenance, infrastructure improvement and production.

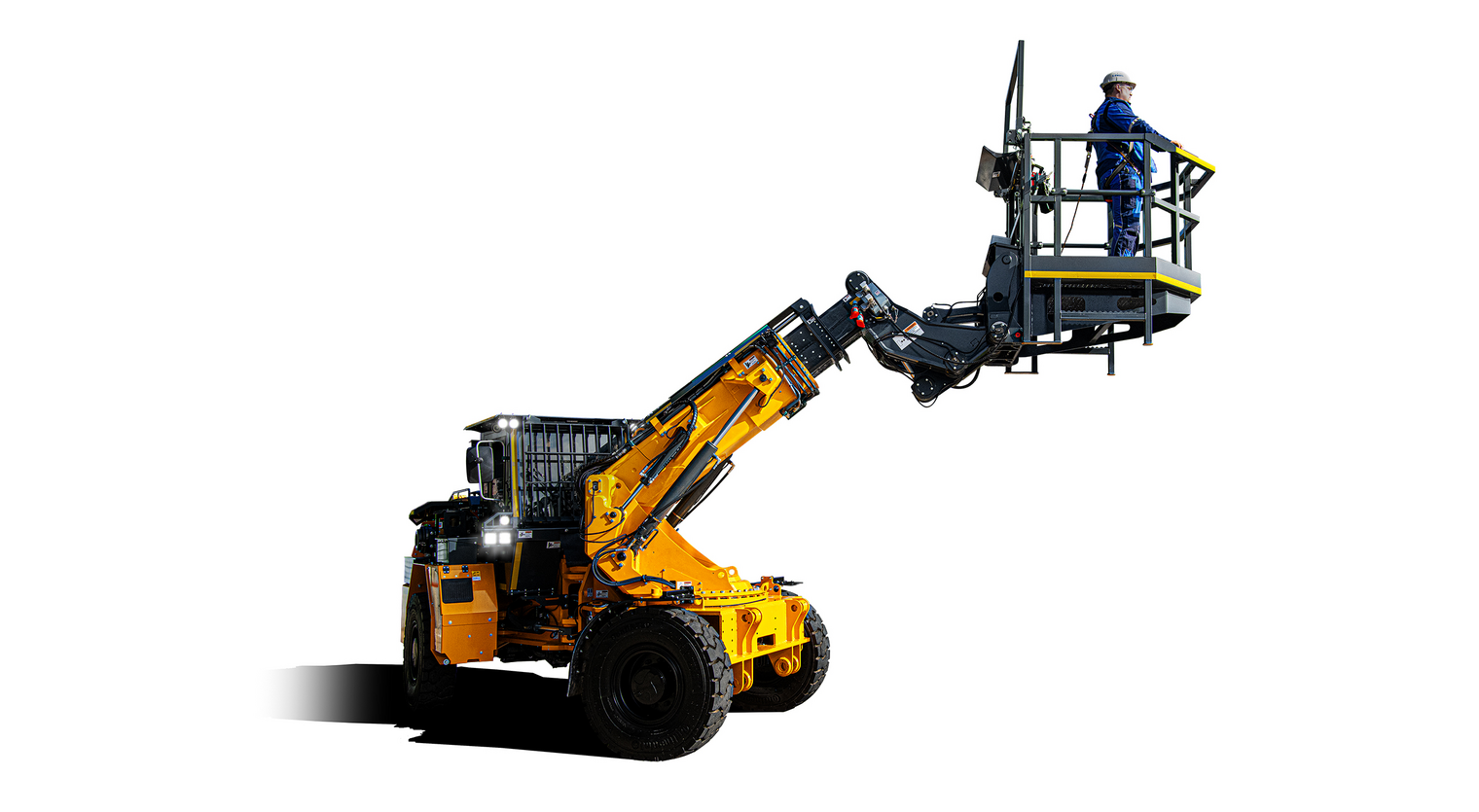

A unique feature is the self propell function from the man basket, which allows  one-man operation. All functions, including driving, can be controlled and monitored from the platform. This gives the operator more flexibility, but also significantly more safety when working at height, as the controls can be taken over independently. There is no need for a second person in the cabin; two people in the basket can work on their own. Safety is further enhanced by safety standards such as inclination monitoring, safety-limited speeds and redundant sensors.
The basic concept of the machine is based on the proven P-platform. This is also the basis for the PScale 10-T, which has been successfully established on the market since 2020. Proven synergies such as the control system, motor and driveline as well as the radio remote control are available. Other options include Stage V enginesand additional front supports.

The operator at the center of the machine

The new control system offers a good overview and a high comfort for the operator. The diagnostic display shows errors on the relevant assemblies so that they can be easily corrected. The joystick function controls the machine centrally and is easy to use.
The new enclosed, decoupled and isolated cabin gives significant noise and vibration reduction. As an option, the cab can be 20° hydraulically tilted. This improves operator ergonomics and increases productivity.

Easy maintenance

The machine is exposed to extreme operating conditions that require special corrosion protection for the components. Easy maintenance of the various components and service from ground is given. Paus offers a swivel-mounted cooler as a standard on the new machine. This makes the access to maintenance points much more easier and quicker.
