Inclined Elevator EASY FLEX

Safe Material Transport from the outside

Is there an inclined elevator suitable for all transport tasks?

The Paus Easy Flex series inclined elevator is designed for maximum versatility. Thanks to its robust construction and interchangeable platform types, the Easy Flex masters virtually every everyday challenge - whether as a sturdy construction elevator for roof tiles, a gentle solar elevator for photovoltaic modules, a spacious furniture elevator for moving, or a safe inclined elevator for scaffolding work.

COMPACT DESIGN

[Translate to Englisch:] kompakter Schrägaufzug

With a passage width of only 1.60 m and a total length of less than 7 m, the elevator can be easily transported even in confined spaces. In operation, the Easy Flex achieves a maximum extension length of 35 m and offers an endless 360° working radius.

HIGH SAFETY

[Translate to Englisch:] Umzugslift, Möbelaufzug

The patented braking system ensures safe driving. The swiveling and telescopic X-support allows various position configurations for maximum stability and flexibility. The stable lower extension ensures back-friendly working.

FLEXIBILITY IN USE

[Translate to Englisch:] Bauaufzug, Gerüstaufzug

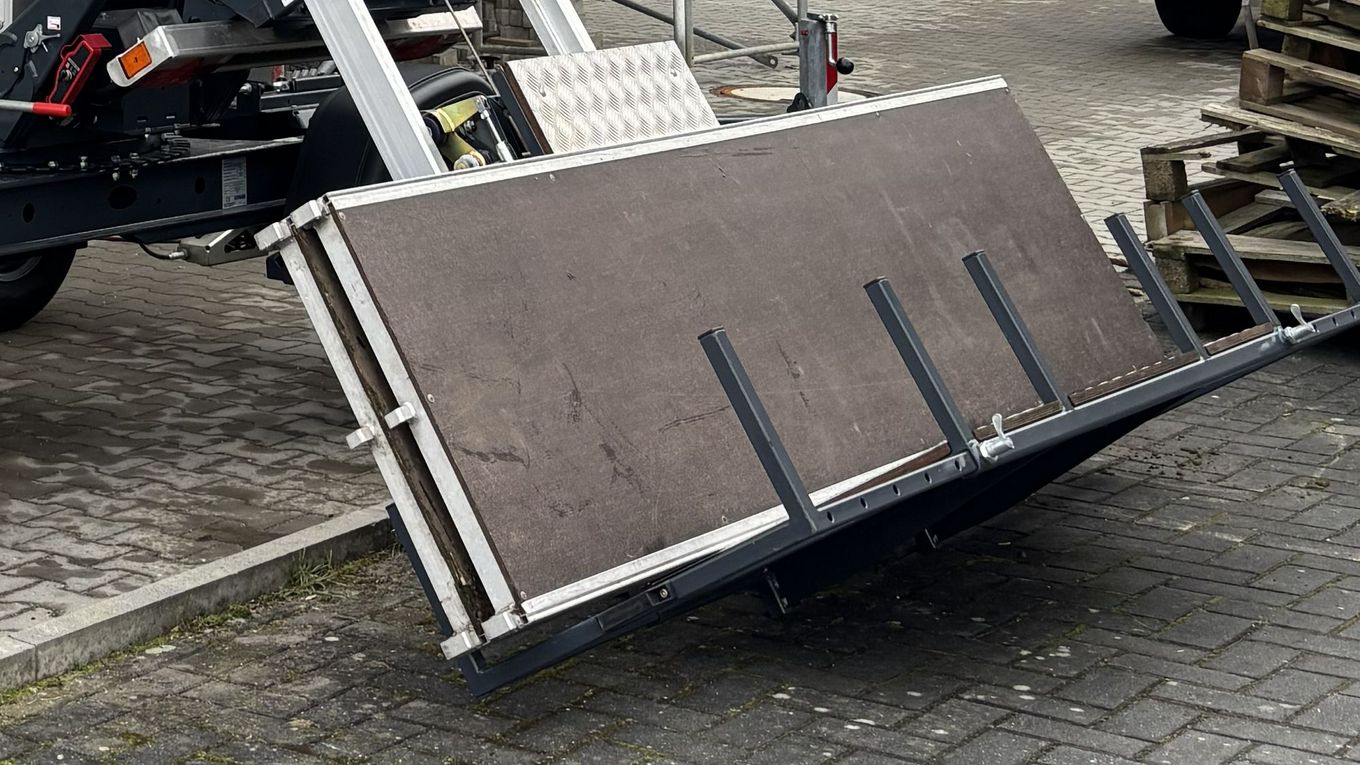

The Easy Flex impresses with its versatility and robust construction. Thanks to various platforms, it can be flexibly used in any task and offers reliability and durability in daily use. Depending on the platform type, the payload is up to 400 kg.

Heavy loads lifted quickly, safely, and effortlessly

Bulky sofas, long scaffolding components, large windows, or heavy packs of tiles - the Easy Flex transports everything to upper floors safely and effortlessly. Put an end to cramped stairwells and frustrated site helpers. As a versatile inclined elevator, the Easy Flex handles any transport task in no time. It protects both the load and the stairwell, saves valuable time, and relieves strain on your back.

Inclined Elevator Easy Flex 936 KB

Inquire now Make an appointment

Easy Flex Highlights

FLEXIBILITY

Very compact design
Narrow passage width
Small footprint
360º pivot radius
Flexibility in use
Wide range of carriages

OPERATING COMFORT

Stable lower extension
Hydraulic double knee joint (standard for Easy Flex 28 K)
Patented bracking system
Maintenance-free rail package
User-friendly operation
Safety functions

Furniture Elevator — Narrow passage width

solar elevator for photovoltaic modules — Solar platform

Moving elevator, furniture elevator — Furniture platform

Roofer elevator, material elevator — Hydraulic double knee joint

TECHNICAL INFORMATION

**Only with the rotating and retractable furniture platform. The right is reserved to amend the technical data and theequipment without advance notice.
	EASY FLEX 27	EASY FLEX 31	EASY FLEX 35	EASY FLEX 28 K
Number of profiles	1 - 6	1-7	1-8	1-7, Hydraulic double knee joint
Profile length	5,000 mm	5,000 mm	5,000 mm	5,000 mm
Payload, max.	250/400* kg	250/400* kg	250/400* kg	250
Delivery height, approx.	5.0 - 27.0 m	5.0 - 31.0 m	5.0 - 35.0 m	5.0 - 28.0 m
Total weight, basic versionin Grundausführung	approx. 1,850 kg	approx. 2,000 kg	approx. 2,150 kg	approx. 2,050 kg
Transport length	6,950 mm	6,950 mm	6,950 mm	6,950 mm
Transport width	1,600 mm	1,600 mm	1,600 mm	1,600 mm
Drive	Honda Petrol / 230V Electric	Honda Petrol / 230V Electric	Honda Petrol / 230V Electric	Honda Petrol / 230V Electric
	optional hybrid drive	optional hybrid drive	optional hybrid drive	optional hybrid drive
