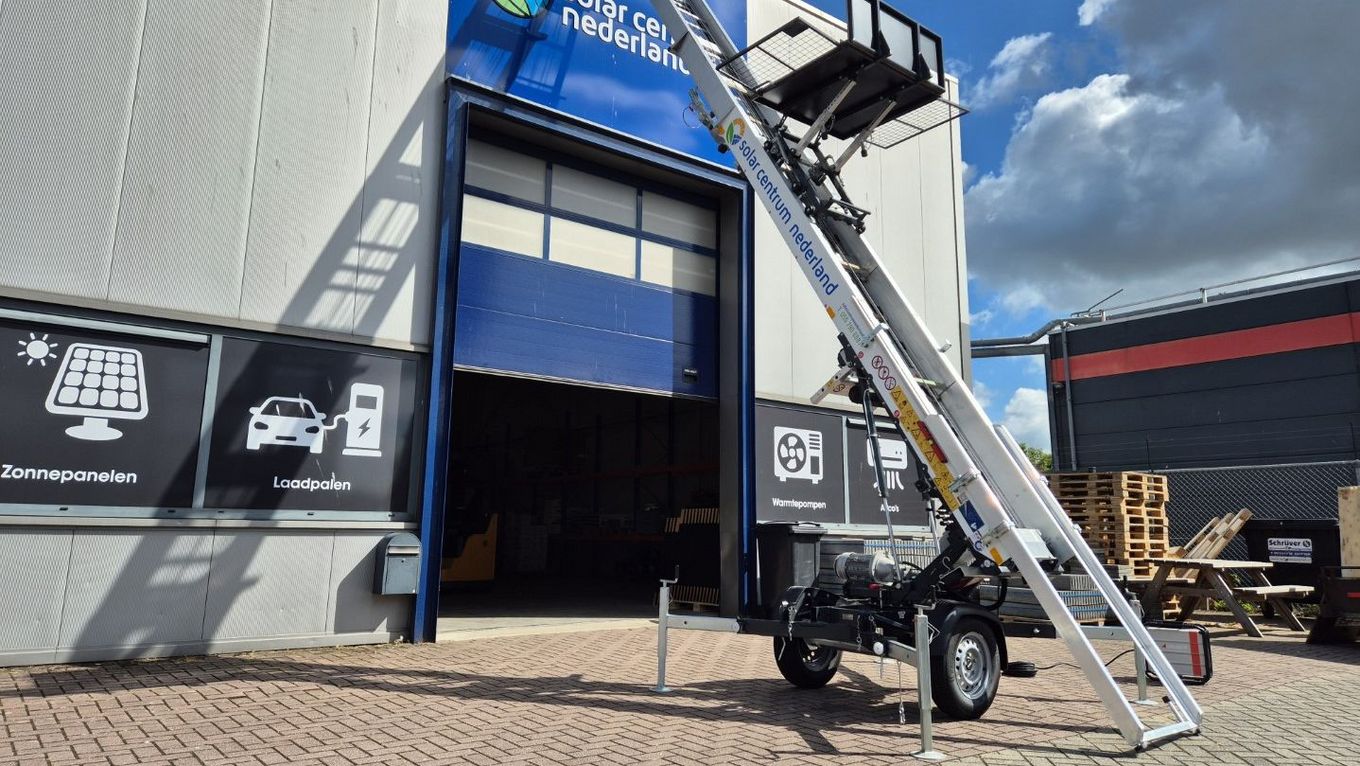

Construction Elevator Easy

Compact and robust jobsite material lift for every craftsman

What is the best way to transport tools and building materials upwards quickly and without straining your back?

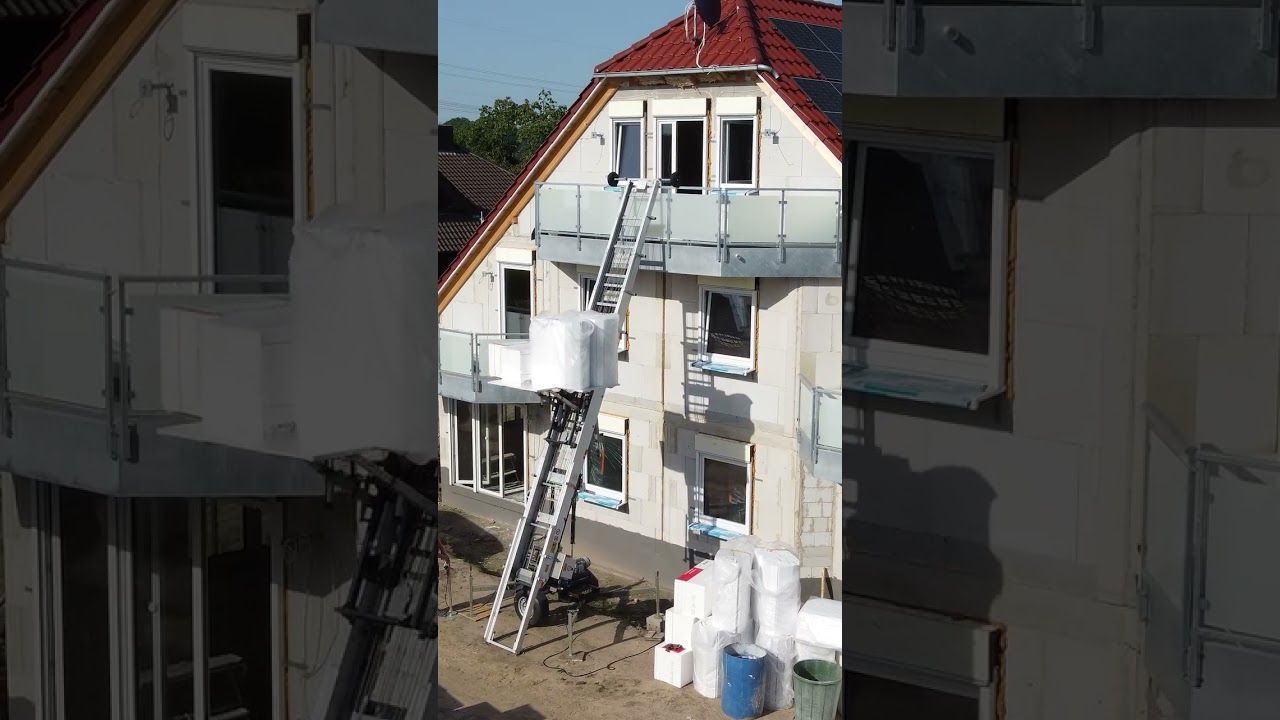

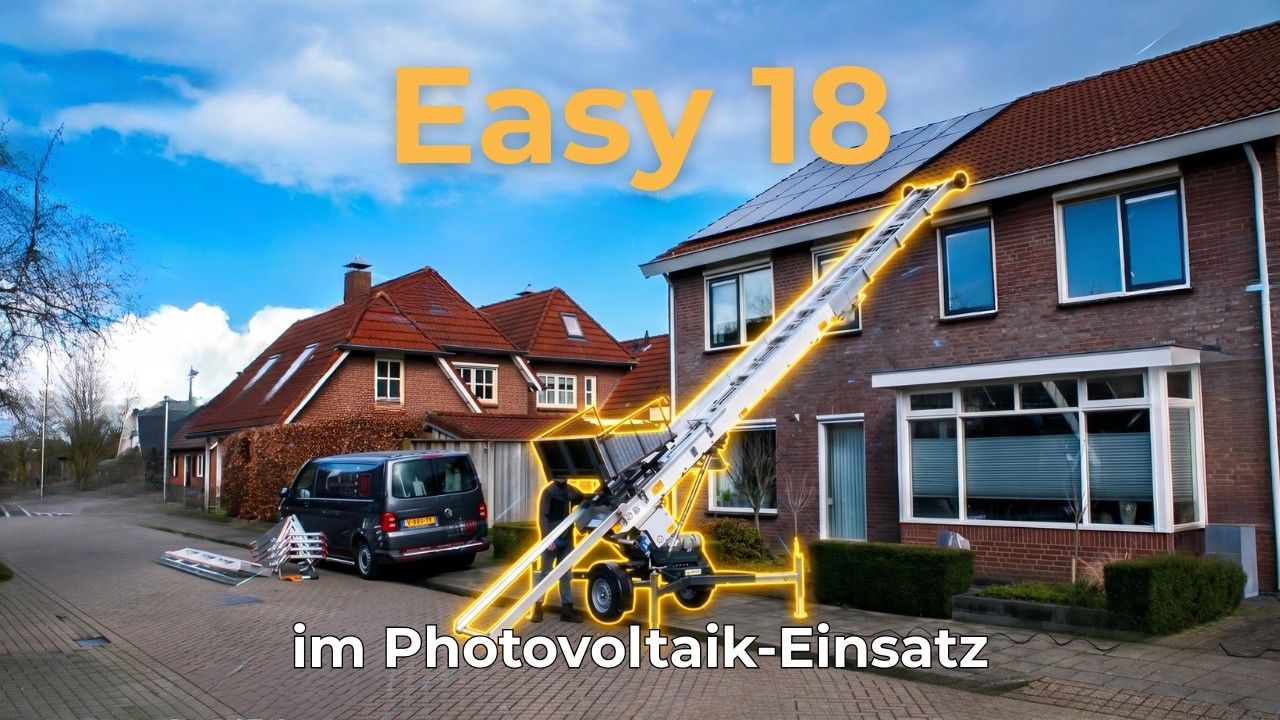

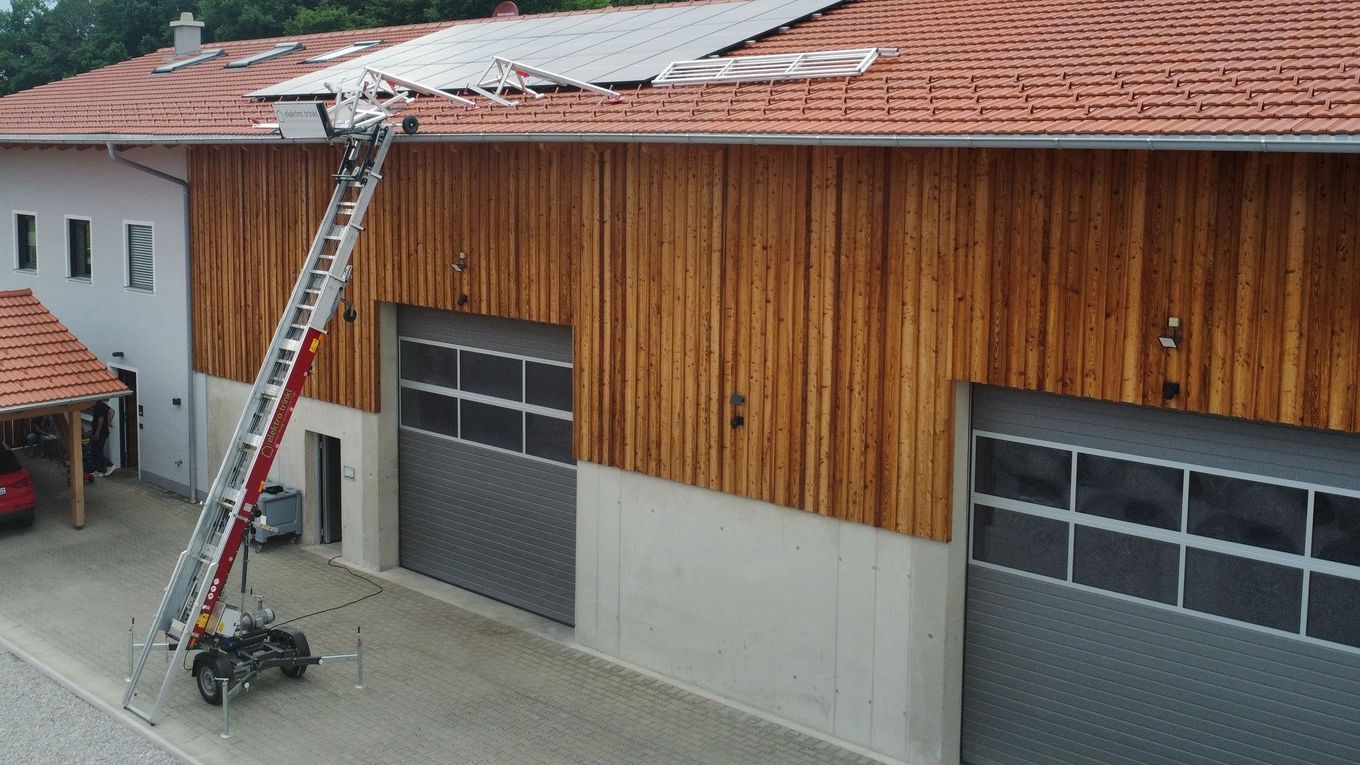

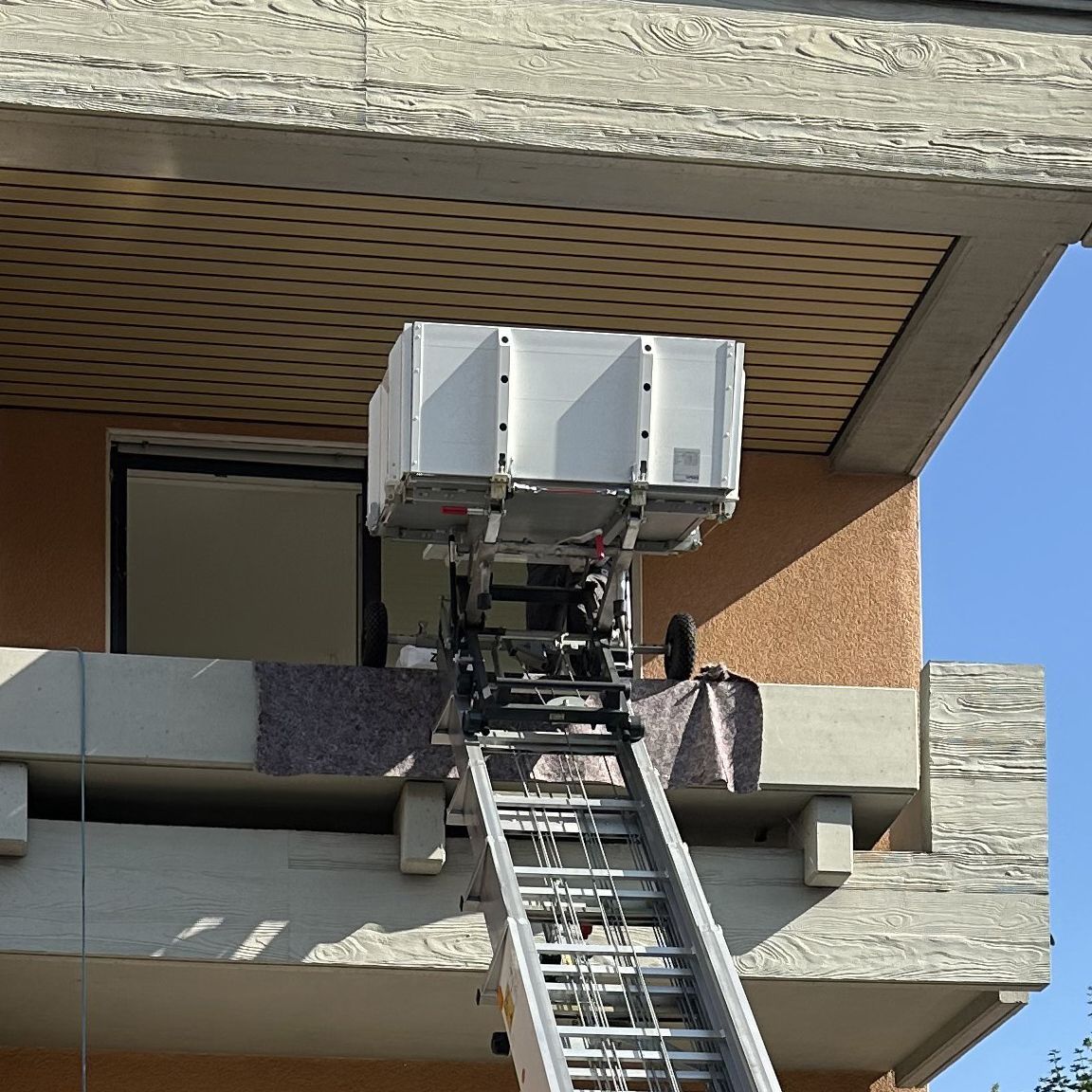

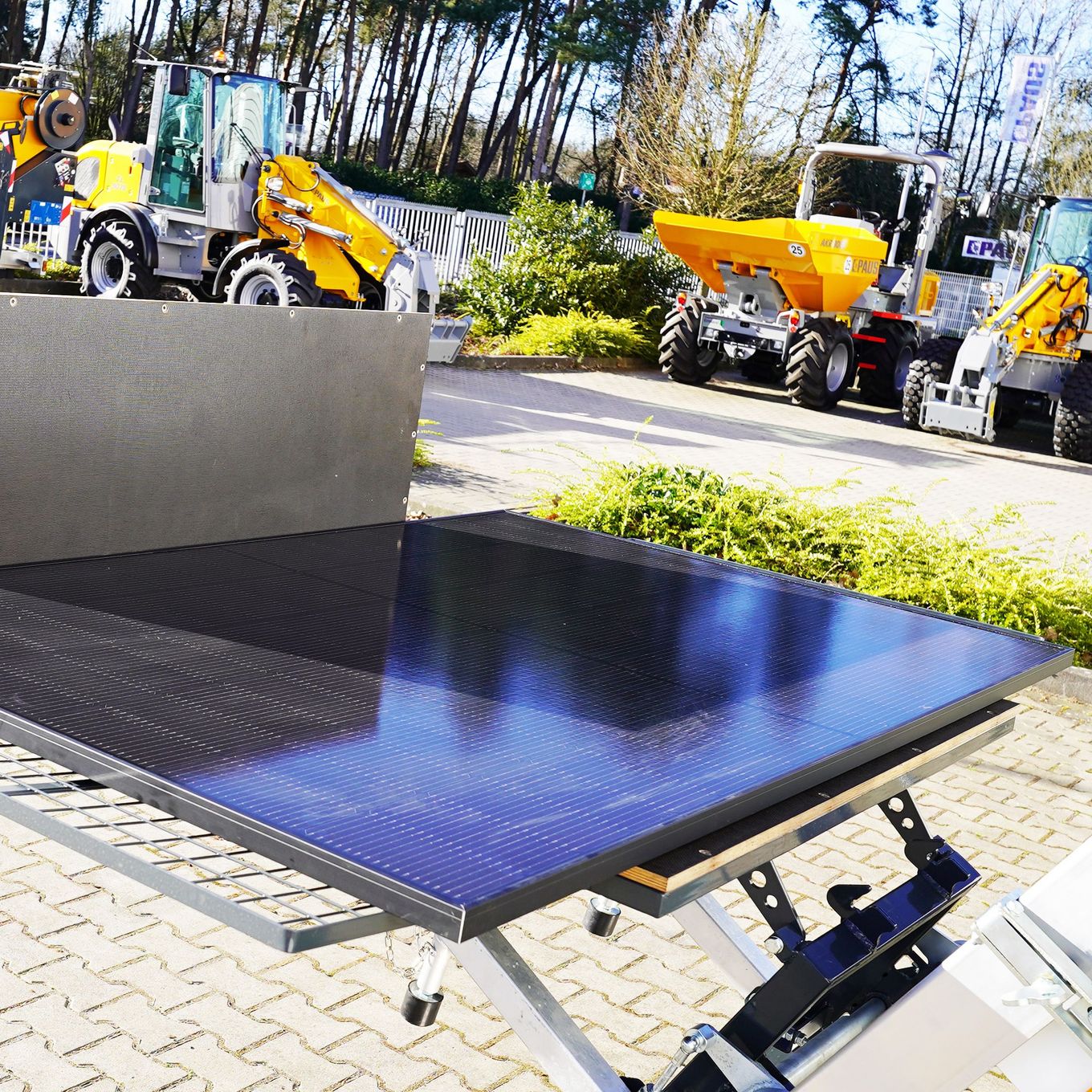

The Paus Easy construction elevator transports materials straight to the 6^th floor in seconds. Tons of building materials such as roof tiles, insulation, and solar panels, or power tools like tile cutters no longer need to be effortfully carried up stairwells or ladders.

Very compact, ideal for tight construction sites

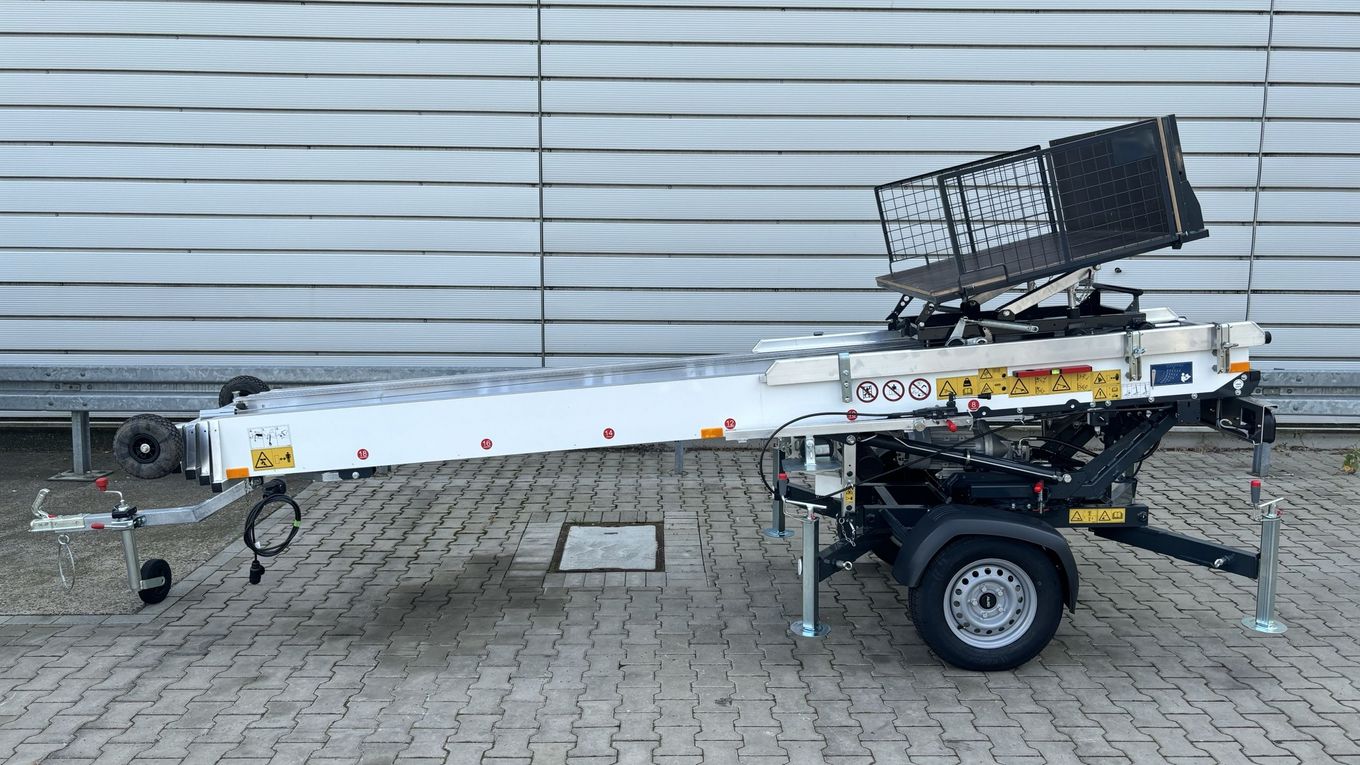

Thanks to a narrow passage width starting at just 1.36 m and an extremely low weight from 750 kg, the Easy construction elevator is simple to maneuver and can be positioned even in tight driveways. The folding drawbar is mounted on the base rail and lifts up with the unit, thereby reducing the required setup footprint to an absolute minimum. Where conventional elevators are simply too large and heavy, the Paus Easy delivers full transport performance with maximum flexibility.

Maximum safety with maximum operating range

The robust X-shaped outrigger system ensures exceptional stability and enables a wide lateral reach. The carriage is equipped with an automatic cable-break safety device that engages instantly in an emergency, protecting both personnel and materials. In daily operation, the construction elevator proves extremely practical thanks to its 360° working area. It accelerates the flow of materials and makes work easier for craftmen at any height.

Convenience at the touch of a button: Intuitive operation

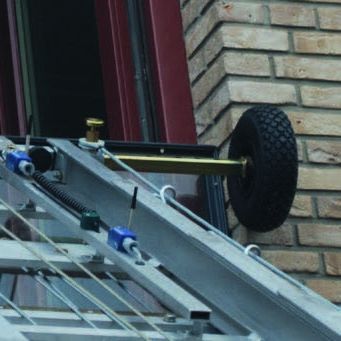

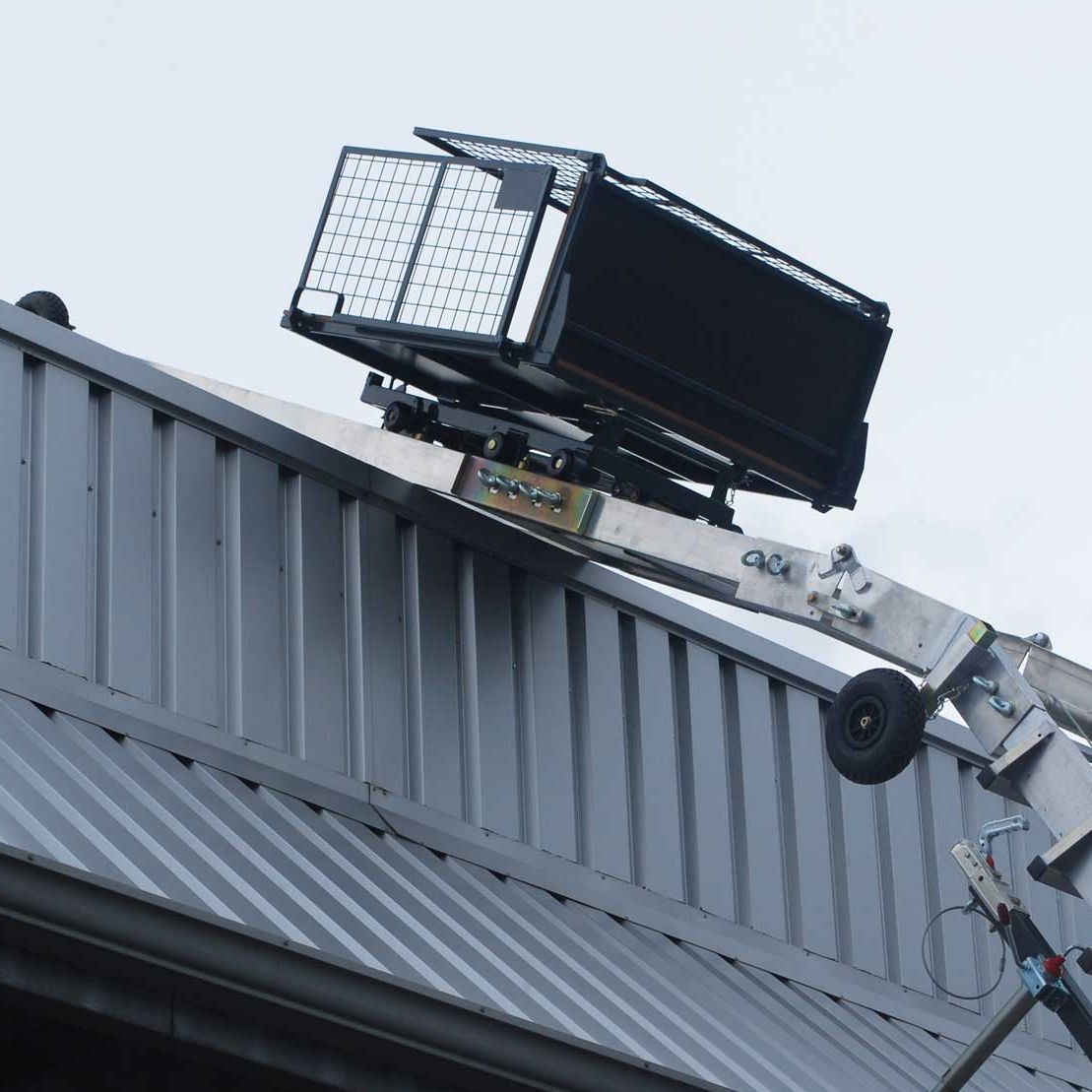

Thanks to its intuitive operation, the Easy construction elevator requires no extensive training. Hydraulic uplifting of the rail assembly saves valuable time and effort, while the extendable base section ensures completely back-friendly operation. Maximum flexibility is ensured by a continuously adjustable turntable lock. Wheels on the head section allow for gentle positioning against the building and smooth movement along the façade.

Reduced physical strain and time savings thanks to the Easy application

Make a request

Schedule a demonstration

Highlights of the Construction Elevator Easy

Lifting Height

The Paus Easy effortlessly reaches lifting heights of up to 24 meters.

Maintenance-free

The elevator has a maintenance-free rail assembly through the use of polyamide sliding blocks.

Payload

The Paus construction elevator transports loads of up to 250 kg upwards in a matter of seconds.

Strong

Powerful double lifting cylinders guarantee absolutely vibration-free and safe raising of the rail package.

Drive

The Easy can be driven with a 230V electric motor, a Honda petrol engine or an optional powerpack.

Multifunctional

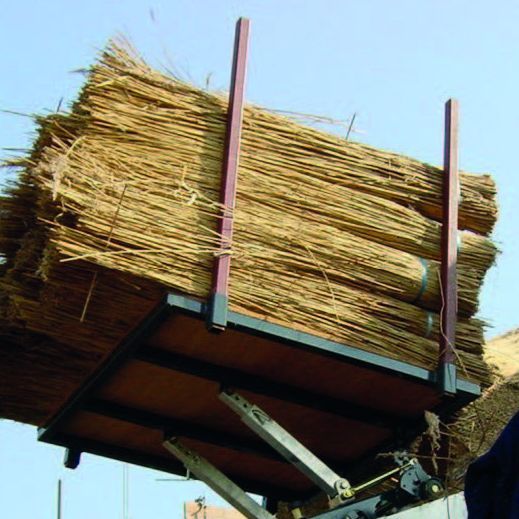

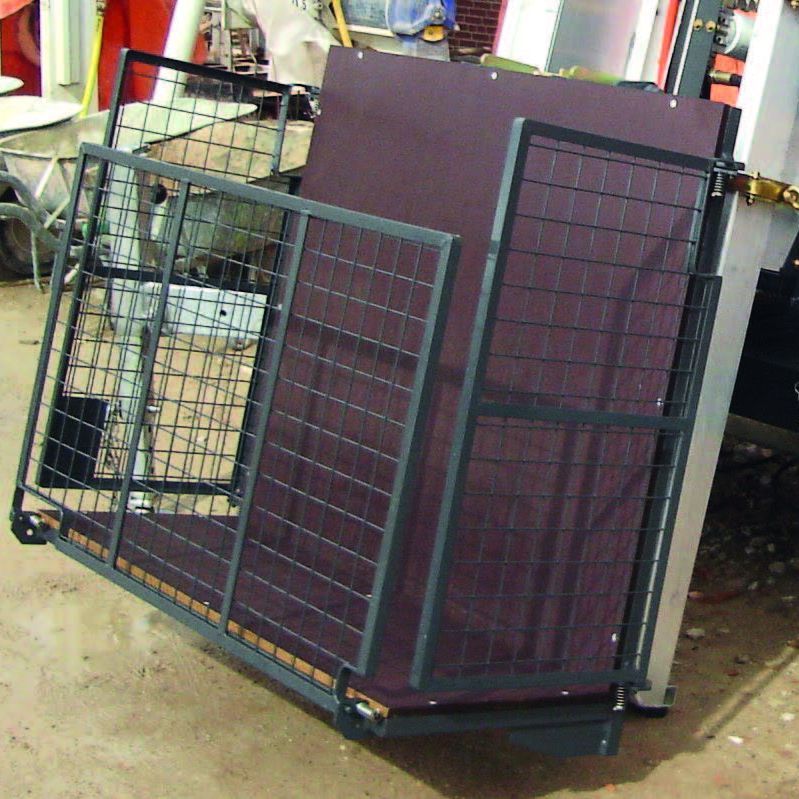

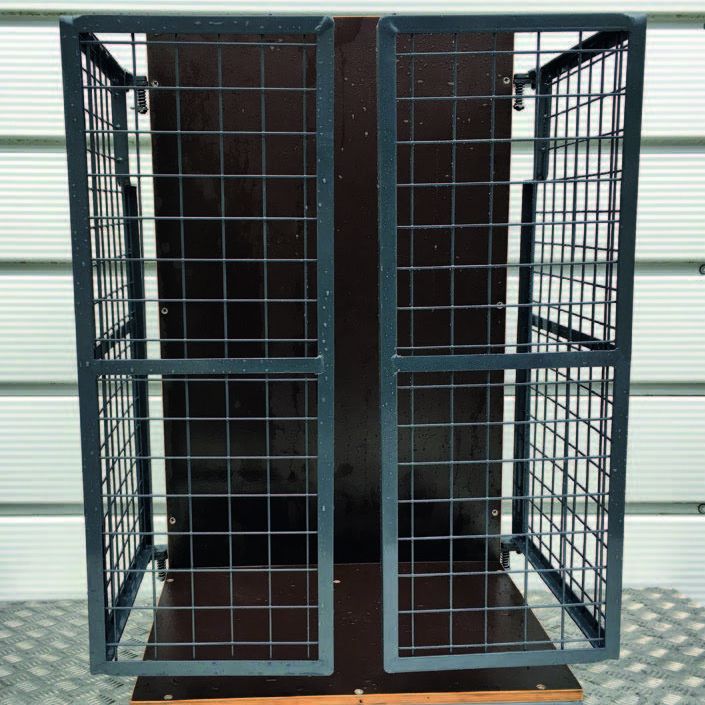

Thanks to a wide range of easily interchangeable platforms, the Paus Easy adapts to the needs of any trade sector.

TECHNICAL INFORMATION

	18 WH	21 WH	24 WH
Number of profiles	1 - 5	0 - 5	0 - 6
Profile length	4,200 mm	4,200 mm	4,200 mm
Extension length	4.4 - 18 m	4.4 - 21 m	4.4 - 24.4 m
Total weight (basic equipment)	750 kg	750 kg (trailing axle)	1,200 kg
		1,000 kg (brake axle)
Transport length	5,300 mm	5,300 mm	5,970 mm
Transport width	1,360 mm	1,360 mm	1,400 mm
